Top-quality Alloy 20 Pipe Fittings, UNS N08020 Buttweld Fittings designed with ASTM B366 standards.

Creative Piping is a leading manufacturer and supplier of Alloy 20 pipe fittings, renowned for its commitment to quality and innovation in the industry. Alloy 20 fittings are meticulously crafted to withstand severe corrosive environments, particularly those involving sulfuric acid, ensuring exceptional durability and reliability. By leveraging advanced manufacturing techniques and adhering to stringent quality standards, We delivers a diverse range of alloy 20 pipe fittings, including elbows, tees, reducers, caps, plugs, and flanges.

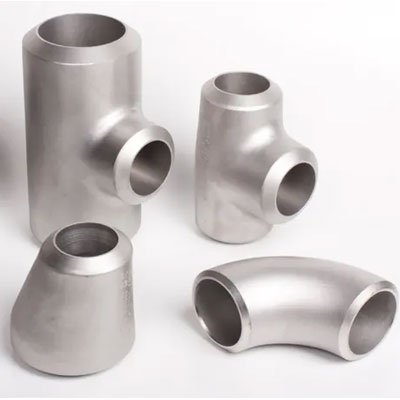

Alloy 20 pipe fittings are components made from a specialized nickel-iron-chromium alloy known as Alloy 20, or Carpenter 20. This alloy is designed to offer excellent resistance to a wide range of corrosive environments, particularly sulfuric acid. Alloy 20 pipe fittings are crucial in ensuring the integrity and longevity of piping systems in corrosive environments, making them an essential component in various industrial applications.

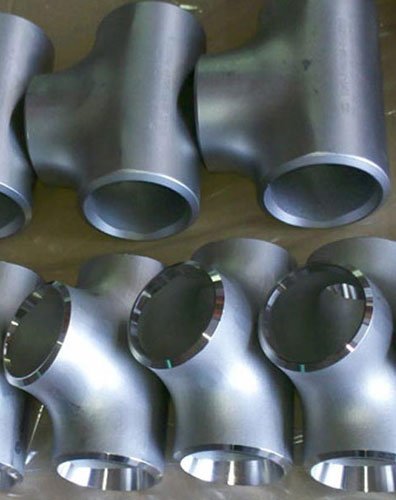

Alloy 20 Pipe Fittings

Are You Looking to Buy ASTM B366 Alloy 20 Buttweld Fittings? DIN 2.4660 Buttweld Elbow, Cross, Reducer Fittings Manufacturers & Suppliers in Sizes 1/2” NB TO 72” NB. Call Us for Best Price.

Alloy 20 Buttweld Fittings Specification

Specifications & Grades 01

ASTM B366 / ASME SB366 - Alloy 20

Size range 02

Seamless Fittings: 1/2" - 24"

Welded Fittings: 4" - 72"

Dimensions 03

ASME/ANSI B16.9, B16.28, MSS-SP-43, BS4504, BS4504, BS10

Bending Radius 04

R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom


Type 05

Seamless / Welded / Fabricated, Elbow, Tee, Reducer, Stub End, Cross, Cap

Schedule 03

Schedule 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS

get a quote

Contact us

Email

Call Now

Chat With Us

We Manufacture & Supplier Alloy 20 Pipe Fittings (UNS N08020, WNR 2.4660) in different forms like Elbow, Tee, Reducer, Cross, Lap Joint Stub End, End Caps, and Pipe Bends.

We have a huge inventory of MSS-SP-43 Alloy 20 Buttweld Fittings in almost all sizes, know more about Dimensions, Weight Charts, Tolerance Chart, Sizes of Pipe Bends (1D, 1.5D, 3D, 5D, 10D, Hot Induction, Long Radius, Mitered, J, Piggable, U), Tee (Equal, Unequal/Reducing), Crosses (Equal, Unequal/Reducing), Reducer (Concentric, Eccentric), Elbow (45 Degree, 90 Degree, 180 Degree, LR, SR), End Pipe Caps, Stub Ends (Long, Short, Lap Joint).

Types of Alloy 20 Pipe Fittings



Alloy 20 Elbow

Alloy 20 elbow

01
Alloy 20 Tee

Alloy 20 Tee

02
Alloy 20 Reducer

Alloy 20 Reducer

03
Alloy 20 Cross

Alloy 20 Cross

04
Alloy 20 Stub End

Alloy 20 Stub End

05
Alloy 20 End Cap

Alloy 20 End Cap

06
Alloy 20 Bends

Alloy 20 Bends

07
Creative Piping is the premier exporter and distributor of Alloy 20 equal, unequal or reducing cross, tee buttweld fittings, serving markets across the USA, UAE, Saudi Arabia, Oman, and Qatar.

Alloy 20 Buttweld Elbow Equivalent Grades

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS BS GOST
Alloy 20 N08020 2.4660 Z2NCUD31-20AZ NiCr20CuMo – – –

Chemical Composition of Alloy 20 Short Stub End

Alloy 20 Ni C Mo Mn Si Fe Cu S P Cr
32 – 38 0.02 Max 2 – 3 1 – 2 0.7 Max Bal 3 – 4 0.005 Max 0.02 Max 19 – 21

Mechanical Properties of Alloy 20 Reducer Pipe Fittings

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.1 G/Cm3 1443 °C (2430 °F) Psi – 35000 , MPa – 241 Psi – 80000 , MPa – 551 30 %

Exporter and Distributor of Alloy 20 Pipe Fittings and ASTM B366 Alloy 20 Elbow, Tee, Reducer, Cross, Lap Joint Stub End to USA, Saudi Arabia, UAE, and Bahrain.

01 What is Alloy 20?

Alloy 20, also known as Carpenter 20, is a nickel-iron-chromium alloy designed for superior resistance to corrosion, especially in sulfuric acid environments.

The available types include elbows, tees, reducers, caps, plugs, and flanges, each serving specific functions in piping systems.

Alloy 20 is known for its excellent resistance to sulfuric acid, chloride stress corrosion cracking, and pitting. It also has good mechanical properties and stability in both high and low-temperature conditions.

Alloy 20 pipe fittings typically comply with various international standards such as ASTM B366, ASME B16.9, and other relevant specifications depending on the application.
