Steel Flanged Elbow Fittings Manufacturers

Creative Piping is a leading manufacturer and supplier of flanged elbows, offering high-quality products designed to meet diverse industrial needs. With a focus on precision engineering and durability, We ensure that its flanged elbows are suitable for various applications, including high-pressure and corrosive environments. Committed to delivering reliable solutions, We combine advanced manufacturing techniques with stringent quality control to provide products that meet international standards, making a trusted choice in the piping industry.

A flanged elbow is a specialized pipe fitting used to change the direction of flow in a piping system while providing a secure, leak-proof connection. The flanged ends of the elbow allow it to be bolted directly to other flanged components, such as pipes, valves, or equipment, facilitating easy assembly and disassembly. This makes flanged elbows particularly useful in systems where maintenance or frequent inspection is required. Available in various materials, sizes, and pressure ratings, flanged elbows are designed to withstand different environmental conditions, including high pressure, temperature extremes, and corrosive substances.

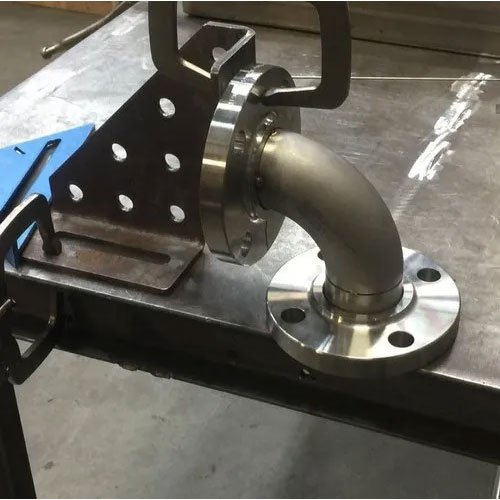

Flanged Elbow Fittings

Are You Looking to Buy Flanged Elbolet? Flanged Elbow Pipe Fittings Manufacturers & Suppliers in Sizes 4 in. Call Us for the Best Price.

Flanged Elbow Specification

Size 01

4 inch

Elbow Type 02

Flanged

Applications 03

Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects.

Material04

Cast Iron

Rating 05

125#

get a quote

Contact us

  Email

  Call Now

  Chat With Us

We produce various types of Flanged Elbow, like 90-Degree Flanged Elbow, 45 Degree Flanged Elbow, 180 Degree Flanged Elbow, Reducing Flanged Elbow, LR Flanged Elbow, SR Flanged Elbow. know more about Dimensions, Weight Charts, Tolerance Chart, Sizes
Catalogue

Flanged Elbow Compliance / Rating

Item Material Compliance/Rating
Flanged Elbow Galvanized ASTM A653 with a G-90 Rating
304 SS Finish meets ASTM A240
316 SS Finish meets ASTM A240
Creative Piping is the premier exporter and distributor of Flanged Elbow Pipe Fittings, serving markets across the USA, UAE, Saudi Arabia, Oman, and Qatar.

What is Flanged Elbow ?

Flanged Elbows are available in standard bend angles of the bend. Flanged elbows from 3 to 7 inches (ca. 18 cm) in diameter are press formed, and flanged elbows greater than 8-inch diameter is segmented elbows. Flanged elbows are available galvanized and 304 SS metal, and are available up to 18 gauge metal. Flanged Elbows are wont to change the airflow direction in lines of ductwork.

How to Manufactured Flanged Elbows are ?

  • In galvanized or 304 SS, from 3 to 40-inch diameters.
  • Standard metal thickness for 3 to 24 inch (0.61 m) diameters is 20, 22 to 24 gauge with optional 18 gauge. For 26 to 40 inch (ca. 1 m) diameters, is standard 18 gauge.
  • 3 to 7 inch (ca. 18 cm) diameters are press formed, having formed halves stitch-welded together, and have a bend radius of 1.0CLR
  • 3 to six inch diameters in 14 gauge 304 SS stainless-steel are tubed. Standard metal thickness for 304SS 7 to 24 inch (0.61 m) diameters is 20 gauge with optional 18 gauge. For 26 to 40 inch (ca. 1 m) diameters, is standard 18 gauge.
  • Flanged Elbow is retained via a Vanstone lip in order that bolt holes can easily be aligned with those on existing flanged connection

Why Choose CPS as Your Source for Flanged Elbow?

  • Quality Assurance
  • Wide Range of Products
  • Customization Capabilities
  • Competitive Pricing
  • Reliable Delivery
  • Customer Service

We have a huge inventory of 90-degree flanged elbow, 45-degree flanged elbow, 180-degree flanged elbow, Reducing flanged elbow, Long radius flanged elbow, Short radius flanged elbow, Stainless steel flanged elbow, Carbon steel flanged elbow, High-pressure flanged elbow, ASME B16.5 flanged elbow, ANSI flanged elbow, Flanged pipe elbow, Weld neck flanged elbow, Raised face flanged elbow, Flanged elbow fitting, Industrial flanged elbow, Custom flanged elbow.

01 What materials are flanged elbows made from?

Flanged elbows are commonly made from materials such as carbon steel, stainless steel, alloy steel, and sometimes from non-metallic materials like PVC, depending on the application and environmental conditions.

The main advantages of using a flanged elbow include ease of assembly and disassembly, secure and leak-proof connections, and the ability to handle high-pressure and high-temperature applications. They also allow for easy maintenance and inspection.

Flanged elbows are used in a wide range of industries, including oil and gas, petrochemical, power generation, water treatment, HVAC, and chemical processing.

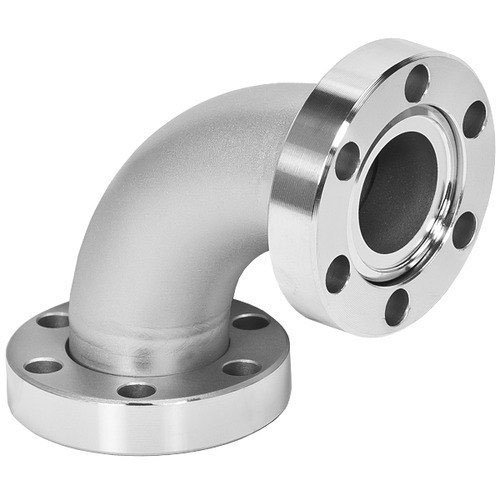

Flanged Elbow Fittings
