Incoloy 800 Pipe Fittings, Alloy 800H / 800HT Buttweld Tee

Find top-notch Incoloy 800 Pipe Fittings, Alloy 800h/ht Buttweld Fittings designed with ASTM B366 standards.

Creative Piping has established itself as a trusted provider of high-performance piping solutions for a diverse range of industries, including aerospace, petrochemical, and power generation. Incoloy 800 buttweld fittings are pipe fittings made from variations of a nickel-iron-chromium alloy known as Incoloy. These fittings are designed for joining two sections of pipe or tubing by welding, ensuring a secure and leak-resistant connection in high-temperature and corrosive environments.

Incoloy 800H, and 800HT alloys offer excellent resistance to oxidation, carburization, and corrosion, making them suitable for applications in chemical processing, power generation, and other industries where reliability and durability are paramount. These buttweld fittings are available in various sizes and configurations to meet the specific requirements of different piping systems.

Are You Looking to Buy ASTM B366 Incoloy 800 Pipe Fittings? Incoloy DIN 1.4876 Buttweld Elbow Fittings Manufacturers & Suppliers in Sizes 1/2” NB TO 72” NB. Call Us for Best Price.

Incoloy 800 Pipe Fittings Specification

Specifications & Grades 01

ASTM B366 / ASME SB366 - Alloy 800, 800h, 800ht

Size range 02

Seamless Fittings: 1/2" - 24"

Welded Fittings: 4" - 72"

Dimensions 03

ASME/ANSI B16.9, B16.28, MSS-SP-43, BS4504, BS4504, BS10

Bending Radius 04

R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Type 05

Seamless / Welded / Fabricated, Elbow, Tee, Reducer, Stub End, Cross, Cap

Schedule 03

Schedule 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS

get a quote

sales@creativeforged.com

Call Now

+91 70452 12326

Chat With Us

Click Here!

We Supplier of Incoloy Pipe Fittings (UNS N08800, WNR 1.4876), (UNS N08810, WNR 1.4958 / 1.4876), (UNS N08811, WNR 1.4859 / 1.4876) in different forms like End Caps, Pipe Bends, Elbow, Tee, Reducer, Cross, Lap Joint Stub End.

We have a huge inventory of MSS-SP-43 Incoloy 800, 800H, 800HT Buttweld Fittings in almost all sizes, know more about Dimensions, Weight Charts, Tolerance Chart, Sizes of Pipe Bends (1D, 1.5D, 3D, 5D, 10D, Hot Induction, Long Radius, Mitered, J, Piggable, U), Tee (Equal, Unequal/Reducing), Crosses (Equal, Unequal/Reducing), Reducer (Concentric, Eccentric), Elbow (45 Degree, 90 Degree, 180 Degree, LR, SR), End Pipe Caps, Stub Ends (Long, Short, Lap Joint).

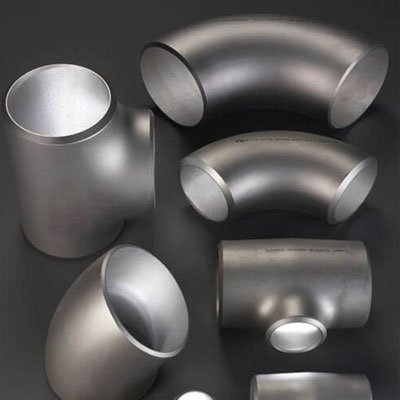

Types of Incoloy 800 Pipe Fittings

Incoloy 800 elbow

Incoloy 800 Tee

Incoloy 800 Reducer

Incoloy 800 Cross

Incoloy 800 Stub End

Incoloy 800 End Cap

Incoloy 800 Bends

Creative Piping is the premier exporter and distributor of Incoloy Alloy 800H / 800HT 45 Degree Elbow, 90 Degree Elbow, 180 Degree Elbow Pipe Fittings, serving markets across the USA, UAE, Saudi Arabia, Oman, and Qatar.

WNR 1.4876 Buttweld Elbow Equivalent Grades

STANDARD	UNS	WERKSTOFF NR.	JIS	BS	EN	GOST	AFNOR	OR
Incoloy 800	N08800	1.4876	NCF 800	NA 15	X10NiCrAlTi32-20	ЭИ670	Z8NC32-21	XH32T
Incoloy 800H	N08810	1.4958 / 1.4876	NCF 800H	NA 15(H)	X5NiCrAlTi31-20	ЭИ670	Z8NC33-21	XH32T
Incoloy 800HT	N08811	1.4859 / 1.4876	NCF 800HT	NA 15(HT)	X8NiCrAlTi32-21	ЭИ670	–	XH32T

Chemical Composition of Alloy 800h End Cap

Grade	C	Mn	Si	Fe	Ni	S	Cu	Cr	Ti	Al
800	0.10 Max	1.50 Max	1.00 Max	39.50 Min	30.00 – 35.00	0.015 Max	0.75 Max	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800H	0.05 – 0.10	1.50 Max	1.00 Max	39.50 Min	30.00 – 35.00	0.015 Max	0.75 Max	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800HT	0.06 – 0.10	1.50 Max	1.00 Max	39.50 Min	30.00 – 35.00	0.015 Max	0.75 Max	19.00 – 23.00	0.15 – 0.60ᴬ	0.15 – 0.60ᴬ

Mechanical Properties of Grade 800ht Cross Pipe Fittings

Element	Density	Tensile Strength	Melting Point	Elongation	Yield Strength (0.2%Offset)
800 / 800H / 800HT	7.94 G/Cm3	Psi – 75,000 , MPa – 520	1385 °C (2525 °F)	30 %	Psi – 30,000 , MPa – 205

Exporter and Distributor of Incoloy 800 Pipe Fittings and ASTM B366 Alloy 800 Elbow, Tee, Reducer, Cross, Lap Joint Stub End to USA, Saudi Arabia, UAE, and Bahrain.

01 What are Incoloy 800 pipe fittings?

Incoloy 800 pipe fittings are components made from the nickel-iron-chromium alloy Incoloy 800, designed for connecting sections of pipe or tubing in various industrial applications.

02 Which standards govern the manufacturing of Incoloy 800 pipe fittings?

Incoloy 800 pipe fittings are manufactured according to standards such as ASTM B366, which specifies the dimensions, materials, and testing requirements for wrought and welded fittings.

03 Are Incoloy 800 pipe fittings resistant to corrosion?

Yes, Incoloy 800 pipe fittings offer excellent resistance to corrosion, oxidation, and carburization in a wide range of corrosive environments.

Incoloy 800 Pipe Fittings Manufacturer
