SS 316 fittings, ASTM A403 WP 316L/316H/316TI elbow manufacturer

ISO-certified SS 316 fittings suppliers offers a wide range of ASTM A403 WP 316L/316H/316TI elbow at genuine price

Creative Piping Solution Pvt Ltd, a leading manufacturer, offers a comprehensive range of 316 Stainless Steel fittings, including 316L, 316H, and 316Ti, all meeting the exacting standards of ASTM A403 and ASME SA403. These fittings are engineered for superior performance across diverse applications. The 316 variant boasts a temperature range from -150°C to 850°C, sizes ranging from DN6 to DN1200 (1/4" to 48"), and a robust pressure rating of up to 6000 PSI.

Ideal for chemical processing and petrochemical industries, the 316L variant with a temperature range of -200°C to 650°C and pressure rating of up to 5000 PSI is favored for pharmaceutical and food processing applications. The 316H variant, designed for high-temperature environments with a range of -200°C to 870°C, supports pressure up to 7000 PSI and finds applications in heat exchangers and power generation.

Finally, the 316Ti variant, with a temperature range of -250°C to 800°C and a pressure rating of up to 4500 PSI, is widely used in corrosive environments within chemical and pharmaceutical industries. At Creative Piping Solution Pvt Ltd, our commitment to precision, adherence to ASTM A403/ASME SA403 standards, and innovative manufacturing set us apart as a trusted partner, ensuring reliability and excellence in every fitting we produce.

We are top stockist of Stainless steel 316 pipe fittings and SS 316L tee accordance to ASME B16.9 in Schedule 10/ 10S, 40/ 40S, 5S, 80S

Stainless Steel 316 pipe fittings specification

Designation/ Standard 01

A 403, SA 403, ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size range 02

Seamless Fittings: 1/2" - 24"

Welded Fittings: 4" - 72"

Schedule 03

Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

get a quote

sales@creativeforged.com

Call Now

+91 70452 12326

Chat With Us

Click Here!

Elevate integrity with Stainless steel 316 Buttweld Fittings: Unmatched corrosion resistance, unparalleled strength

We have a huge inventory of Stainless steel 316/316L/316H/316TI buttweld fittings in almost all sizes, know more about Dimensions, Weight Charts, Tolerance Chart, Sizes of Elbow (45 Degree, 90 Degree, 180 Degree, LR, SR), Crosses (Equal, Unequal/Reducing), Tee (Equal, Unequal/Reducing), Reducer (Concentric, Eccentric), Stub Ends (Long, Short, Lap Joint), End Pipe Caps, Pipe Bends (10D, 1D, 1.5D, 3D, 5D, Long Radius, Hot Induction, J, Mitered, Piggable, U).

SS 316 / 316L / 316H / 316TI fittings types

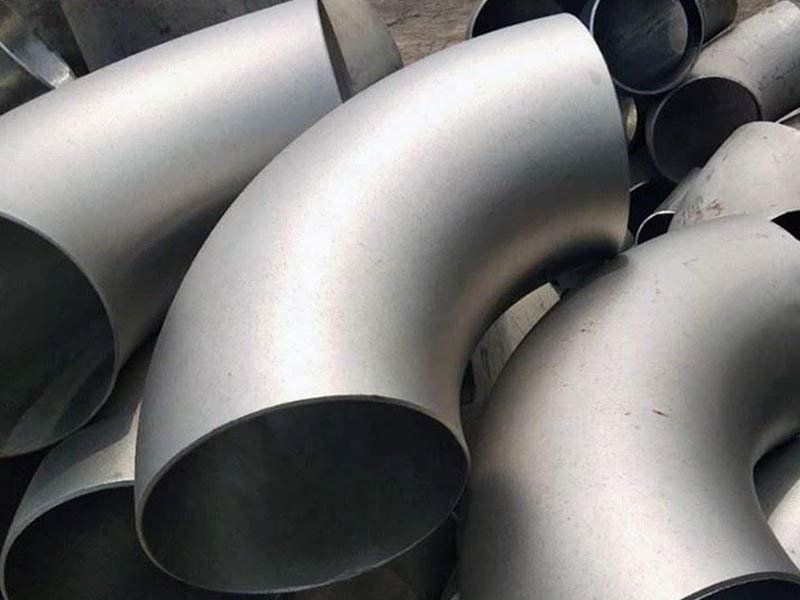

Stainless steel 316 elbow

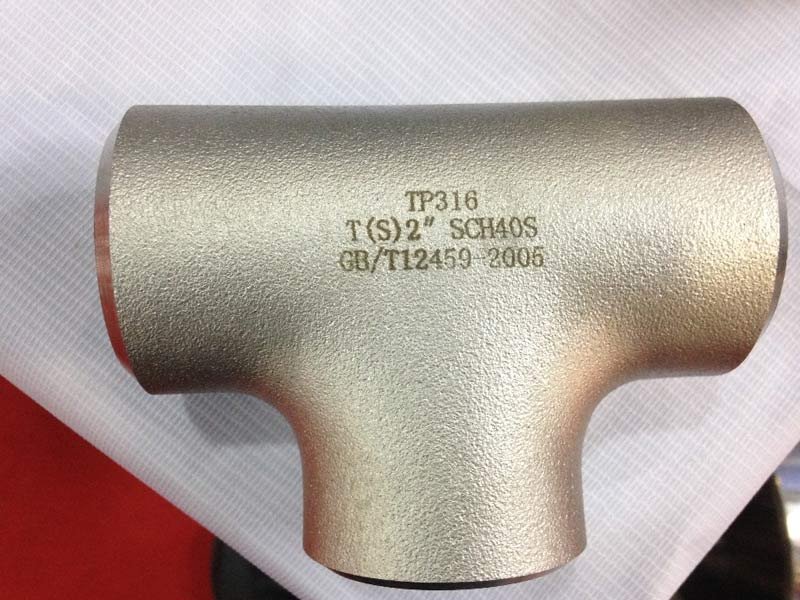

ASTM A403 WP 316L Tee

SS 316H Reducer

SS 316 Cross

SS 316TI Stub End

Stainless Steel 316L End Cap

316H stainless steel Pipe Bends

We offer UNS S31600/ S31603/ S31609/ S31635 Reducer and ASTM A403 F316 Stainless Steel end cap at affordable prices with leak-proofness test reports

ASTM A403 WP 316 Elbow chemical composition

Grade	C	S	Cr	Mn	Si	P	Mo	Ni	N
SS 316	0.08 max	0.030 max	16.00 – 18.00	2.0 max	1.0 max	0.045 max	2.00 – 3.00	11.00 – 14.00	–
SS 316L	0.035 max	0.030 max	16.00 – 18.00	2.0 max	1.0 max	0.045 max	2.00 – 3.00	11.00 – 14.00	–
SS 316H	0.10 max	0.030 max	16.00 – 18.00	2.0 max	0.75 max	0.045 max	2.00 – 3.00	10.00 – 14.00	–
SS 316Ti	0.08 max	0.030 max	16.00 – 18.00	2.0 max	0.75 max	0.045 max	2.00 – 3.00	10.00 – 14.00	–

SS 316L tee mechanical properties

Grade	Density	Tensilee Strength	Melting Point	Yield Strength (0.2%Offset)	Elongation
316	8.0 g/cm3	Psi – 75000, MPa – 515	1400 °C (2550 °F)	Psi – 30000, MPa – 205	35 %
316L	8.0 g/cm3	Psi – 75000, MPa – 515	1399 °C (2550 °F)	Psi – 30000, MPa – 205	35 %
316H	8.0 g/cm3	Psi – 75000, MPa – 515	1400 °C (2550 °F)	Psi – 30000, MPa – 205	35 %
316Ti	8.0 g/cm3	Psi – 75000, MPa – 515	1399 °C (2550 °F)	Psi – 30000, MPa – 205	35 %

Stainless Steel 316 fittings equivalent

STANDARD	UNS	WNR.	EN	AFNOR	JIS	BS	GOST
SS 316	S31600	1.4401 / 1.4436	X5CrNiMo17-12-2 / X3CrNiMo17-13-3	Z7CND17-11-02	SUS 316	316S31 / 316S33	–
SS 316L	S31603	1.4404 / 1.4435	X2CrNiMo17-12-2 / X2CrNiMo18-14-3	Z3CND17-11-02 / Z3CND18‐14‐03	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2
SS 316H	S31609	1.4401	–	–	SUS 316H	–	–
SS 316Ti	S31635	1.4571	X6CrNiMoTi17-12-2	Z6CNDT17‐123	SUS 316Ti	320S31	08Ch17N13M2T

Buttweld Pipe Fittings Manufacturing Process

Check complete information of DIN 1.4401 / 1.4436, 1.4404 / 1.4435, 1.4571 pipe bend like specification, sizes and properties here online

01 Can stainless steel 316 fittings be welded easily?

Yes, stainless steel 316 fittings are readily weldable using common welding techniques such as TIG (Tungsten Inert Gas) or MIG (Metal Inert Gas) welding.

02 Applications of Stainless Steel 316 Pipes Fittings

Chemical Processing, Pharmaceutical Industry, Oil and Gas Industry, Marine Applications, Heat Exchangers, Pulp and Paper Industry, Water Treatment Plants, Construction and Architecture

03 How do SS 316 fittings perform in elevated-temperature environments?

Stainless steel 316 retains its mechanical properties at high temperatures, making it suitable for applications where exposure to elevated temperatures is a consideration, such as in heat exchangers and steam systems.

04 ASTM A403 WP 316 Pipe Elbow benefits

Here are some benefits associated with ASTM A403 WP 316 elbows: Corrosion resistance, High-Temperature performance, Versatility, Strength and durability.

05 Difference between SS 316, 316L, 316H, 316TI pipe fittings

SS 316 is a versatile stainless steel, 316L offers enhanced weldability with reduced carbon, while 316H, featuring higher carbon content, is designed for elevated-temperature applications. On the other hand, 316Ti is stabilized with titanium, preventing sensitization during welding and making it well-suited for both corrosive environments and higher temperatures. Each variant caters to specific needs, emphasizing factors such as corrosion resistance, weldability, and thermal performance.
