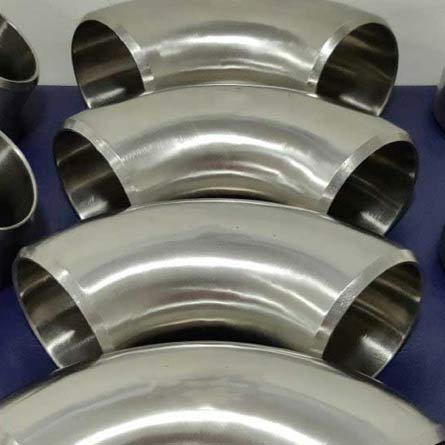

Stainless steel 321 fittings manufacturer, ASTM A403 WP321H elbow

We are top supplier of ASTM A403 WP321H elbow accordance to ASME B16.9 in Schedule 40/ 40S, 10/ 10S, 5S, 80S

Stainless Steel 321/321H Pipe Fittings, precision-crafted by Creative Piping Solution Pvt Ltd, embody engineering excellence for seamless integration in industrial applications. Manufactured in strict compliance with ASTM A403 and ANSI B16.9 standards, these fittings underscore the commitment to quality and precision upheld by the manufacturer.

Comprising iron, chromium (17-19%), nickel (9-12%), and titanium, Stainless Steel 321 features 5 times the carbon content in titanium for heightened corrosion resistance. Simultaneously, Stainless Steel 321H, recognized as UNS S32109 (321H) with WNR. 1.4878, features a tailored higher carbon content (0.04%-0.10%) to meet the demands of elevated-temperature applications.

Available in precise sizes conforming to ASME B16.28 specifications, these fittings highlight the exclusive manufacturing prowess. The recommended temperature range, spanning from cryogenic temperatures to approximately 900°C, underscores the versatility of these fittings, making them well-suited for environments such as chemical processing and petrochemicals. The manufacturer assures a reliable, durable, and seamlessly balanced solution, solidifying their exclusive position as a trusted entity in the industry.

As leading SS 321 pipe fittings stockist, get UNS S32100 end cap with all sizes at lowest price

Stainless steel 321 pipe fittings specifications

Dimensions 01

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10, ASTM A403, ASME SA403

Size range 02

Seamless Fittings: 1/2" - 24"

Welded Fittings: 4" - 72"

Schedule 03

Schedule 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS

get a quote

sales@creativeforged.com

Call Now

+91 70452 12326

Chat With Us

Click Here!

Elevate your piping systems with durable and corrosion-resistant Stainless steel 321H buttweld fittings.

We have a huge inventory of Stainless steel 321/321H buttweld fittings in almost all sizes, know more about Dimensions, Weight Charts, Tolerance Chart, Sizes of Elbow (45 Degree, 90 Degree, 180 Degree, LR, SR), Crosses (Equal, Unequal/Reducing), Tee (Equal, Unequal/Reducing), Reducer (Concentric, Eccentric), Stub Ends (Long, Short, Lap Joint), End Pipe Caps, Pipe Bends (10D, 1D, 1.5D, 3D, 5D, Long Radius, Hot Induction, J, Mitered, Piggable, U).

Stainless steel 321/321H buttweld fittings types

Stainless steel 321 elbow

ASTM A403 WP 321H Tee

SS 321 Reducer

SS 321 Cross

SS 321H Stub End

Stainless Steel 321H End Cap

321 stainless steel Pipe Bends

Get the wide range of ASTM A403 WP321 fittings including tee, concentric and eccentric reducer which shipped anywhere, in any quantity!

Chemical composition of ASTM A403 SS 321 elbow

Grade	C	Mn	Si	P	S	Cr	N	Ni	Ti
SS 321	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 - 19.00	0.10 max	9.00 - 12.00	5(C+N) – 0.70 max
SS 321H	0.04 – 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 - 19.00	0.10 max	9.00 – 12.00	4(C+N) – 0.70 max

SS 321 pipe fittings mechanical properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1457 °C (2650 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

Stainless steel 321 fittings equivalent

STANDARD	WERKSTOFF NR.	UNS	JIS	EN
SS 321	1.4541	S32100	SUS 321	X6CrNiTi18-10
SS 321H	1.4878	S32109	SUS 321H	X12CrNiTi18-9

Stainless steel 321 tee physical properties

Denstiy lbm/in3	Coefficient of Thermal Expansion (min/in)-°F		Thermal Conductivity BTU/hr-ft-°F	Specific Heat BTU/lbm -°F	Modules of Elasticity (annealed)2-psi
at 68 °F	at 68 – 212°F	at 68 – 1832°F	at 200°F	at 32 – 212°F	in tension (E)
0.286	9.2	20.5	9.3	0.12	28 x 106

Buttweld Pipe Fittings Manufacturing Process

SS 321H cross and DIN 1.4878 pipe bend widely used in Pressure vessels, Petrochemical refineries and Oil refinery equipment

01 What are the key benefits of using Stainless Steel 321 pipe fittings?

Stainless Steel 321 provides excellent corrosion resistance, especially in intergranular environments, making it suitable for applications involving welding and exposure to elevated temperatures.

02 What is the maximum service temperature for SS 321 fittings?

Stainless Steel 321 can withstand temperatures up to 800°C (1472°F), making it well-suited for applications in high-temperature environments.

03 In which industries are Stainless Steel 321 fittings widely used?

Stainless Steel 321 fittings used in industries such as petrochemical, chemical processing, and aerospace, where corrosion resistance and high-temperature stability are crucial.

04 What is the primary difference between Stainless Steel 321 and 321H fittings?

The main distinction lies in the carbon content. Stainless Steel 321H has a higher carbon content compared to 321, which enhances its high-temperature strength.
