SS 347 fittings manufacturer, ASTM A403 WP347H elbow/ tee/ reducer

Are you looking for SS 347 fittings in specific size? Check out our inventory of ASTM A403 WP347 Elbow and Tee

Creative Piping Solution Pvt Ltd introduces Stainless Steel 347/347H Pipe Fittings, adhering to ASTM A403 and ANSI B16.9 standards. Comprising iron, chromium (17-19%), nickel (9-13%), and columbium for enhanced corrosion resistance, these fittings, with UNS S34700 (347) and UNS S34709 (347H), and DIN WNR. 1.4550 and 1.4961 respectively, undergo rigorous in-house testing, including Hydrostatic and Positive Material Identification.

Distinguishing features lie in design nuances: Stainless Steel 347, fortified with columbium, excels in resisting intergranular corrosion. In contrast, Stainless Steel 347H, with a higher carbon content (0.04%-0.10%), caters specifically to elevated-temperature applications, providing improved high-temperature strength. These differences highlight adaptability to specific operational requirements, showcasing versatility in various industrial settings.

In critical applications across chemical and petrochemical industries, their resilience within a recommended temperature range from cryogenic to 900°C underscores their technical prowess in craftsmanship and durability.

Buy Stainless Steel 347H Pipe Fittings at Best Price as per International standards like DIN 2615, MSS-Sp-43, DIN 2605, EN 10253-1

Stainless steel 347 pipe fittings specifications

Dimensions 01

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10, ASTM A403, ASME SA403

Size range 02

Seamless Fittings: 1/2" - 24"

Welded Fittings: 4" - 72"

Schedule 03

Schedule 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS

get a quote

sales@creativeforged.com

Call Now

+91 70452 12326

Chat With Us

Click Here!

Transform your piping infrastructure with precision-engineered Stainless Steel 347H buttweld fittings for oil and gas applications.

We have a huge inventory of Stainless steel 347/347H buttweld fittings in almost all sizes, know more about Dimensions, Weight Charts, Tolerance Chart, Sizes of Elbow (45 Degree, 90 Degree, 180 Degree, LR, SR), Crosses (Equal, Unequal/Reducing), Tee (Equal, Unequal/Reducing), Reducer (Concentric, Eccentric), Stub Ends (Long, Short, Lap Joint), End Pipe Caps, Pipe Bends (10D, 1D, 1.5D, 3D, 5D, Long Radius, Hot Induction, J, Mitered, Piggable, U).

Stainless steel 347H fittings types

Stainless steel 347 elbow

ASTM A403 WP 347 Tee

SS 347H Reducer

SS 347 Cross

SS 347H Stub End

Stainless Steel 347 End Cap

347H stainless steel Pipe Bends

ASME B16.9 UNS S34700/ S34709 pipe bend and SS 347H End Cap available in temperature range of up to 1700°F (927°C)

Chemical composition of ASTM A403 SS 347H fittings

Grade	C	Ni	Mn	P	S	Cr	Si	Mo	N
347	0.08 max	9.00-13.00	2.0 max	0.045 max	0.030 max	17.00 – 20.00	1.0 max	–	–
347H	0.08 max	9.00-13.00	2.0 max	0.045 max	0.030 max	17.00 – 20.00	1.0 max	–	–

SS 347 elbow mechanical properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1454°C (2650°F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

Stainless steel 347/347H buttweld fittings equivalent

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
347	1.4550	S34700	SUS 347	320S31	08Ch17N13M2T	Z6CNDT17-123	X6CrNiMoTi17-12-2
347H	1.4961	S34709	SUS 347H	-	–	–	X6CrNiNb18-12

Stainless steel 347 reducer physical properties

Denstiy lbm/in3	Coefficient of Thermal Expansion (min/in)-°F		Thermal Conductivity BTU/hr-ft-°F	Specific Heat BTU/lbm -°F	Modules of Elasticity (annealed)2-psi
at 68 °F	at 68 – 212°F	at 68 – 1832°F	at 200°F	at 32 – 212°F	in tension (E)
0.286	9.2	20.5	9.3	0.12	28 x 106

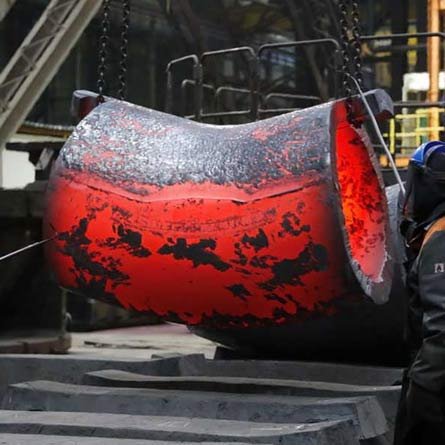

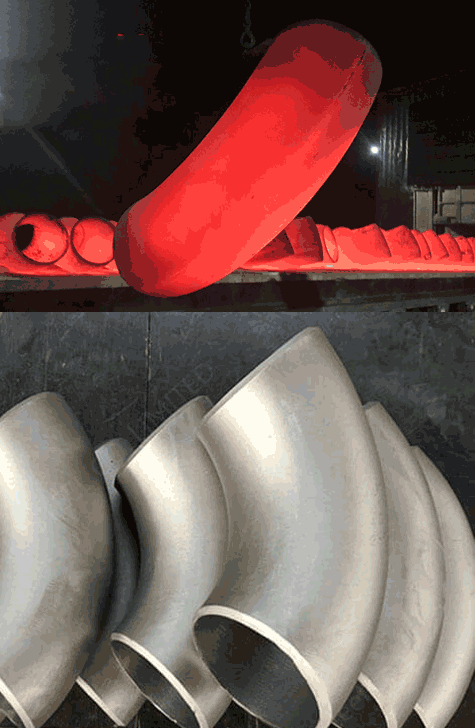

Buttweld Pipe Fittings Manufacturing Process

Check size chart and weight chart of WNR. 1.4550/ 1.4961 Eccentric and Concentric Reducer

01 What is difference between stainless steel 347 and 347H fittings?

Stainless Steel 347 is for moderate temperatures, while 347H, with higher carbon, is for elevated-temperature strength. Both are weldable, and the choice depends on specific high-temperature application needs.

02 Why choose Stainless Steel 347 for pipe fittings?

Stainless Steel 347 offers high-temperature stability and corrosion resistance.

03 Can Stainless Steel 347 fittings withstand elevated temperatures?

Yes, it is designed for high-temperature applications, up to 800°C.

04 In which industries is Stainless Steel 347 elbow commonly used?

Petrochemical, chemical processing, and power generation industries rely on its high-temperature strength.

Stainless steel 347/ 347H fittings manufacturer
